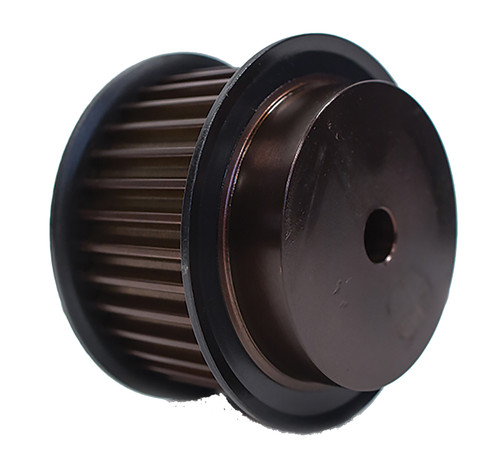

34-8MX36-6FS6, Timing Pulley

34-8MX36-6FS6

34-8MX36-6FS6, Timing Pulley, Steel, Black Oxide,

Learn more about 34-8MX36-6FS6 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Product Number	34-8MX36-6FS6
Teeth	34
Tooth Style	8MX
For Belt Width (mm)	36.00
Type	6F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.500
Bore Description	1/2 Inch Minimum Plain Bore
Pitch Diameter (in)	3.409
Outside Diameter (in)	3.346
Flange Diameter (in)	3.819
Face Width (in)	1.859
Overall Length (in)	2.453
Hub Diameter (in)	2.828
Min. Bore (in)	0.5
Pulley Belt Width (in)	1.620
Unit System	Inch
P.D. (mm)	87.00
O.D. (mm)	85.00
MOQ	1
Weight (lb)	4.91
Part Number Cross Reference	PB8MX-34S-36, PB8MCS-34-36, 34G-8M-36-MPB, 20839720, PB8MX-34S-36 MPB, 8MPC34S36MPB, 34-8MX36-6FS6, 481955, 34-8MX36-6FS6
