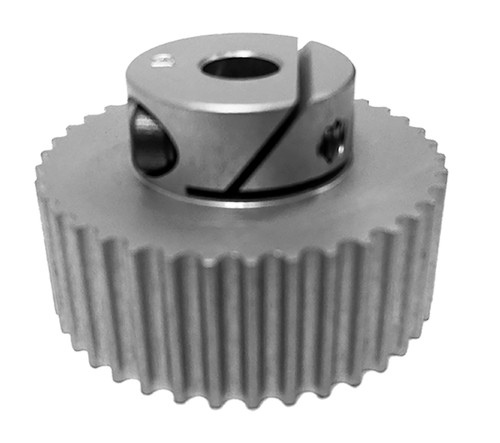

34-3P09-IA3, Timing Pulley

34-3P09-IA3 - E-Z Lock Hub Aluminum Powerhouse® Pulleys

34-3P09-IA3

34-3P09-IA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 34-3P09-IA3 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 34-3P09-IA3
Teeth 34
Tooth Style 3P
For Belt Width (mm) 9.00
Type 6FI
Material Aluminum
Finish Clear Anodized
Bore Type EZ Lock
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 1.278
Outside Diameter (in) 1.248
Flange Diameter (in) 1.388
Face Width (in) 0.506
Overall Length (in) 0.844
Hub Diameter (in) 0.750
Min. Bore (in) 0.25
Unit System Inch
P.D. (mm) 32.00
O.D. (mm) 31.70
Number & Screw Size 1 x 6-32
MOQ 1
Weight (lb) 0.09
Part Number Cross Reference 34-3P09-IA3, 34-3P09-IA3
