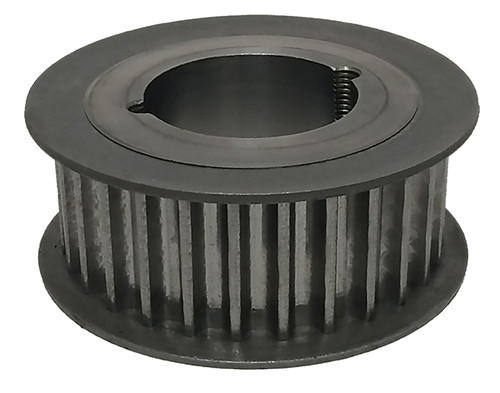

34-14P40-2012, Timing Pulley

34-14P40-2012 - Cast Iron Powerhouse® Pulleys

34-14P40-2012

34-14P40-2012, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 34-14P40-2012 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number	34-14P40-2012
Teeth	34
Tooth Style	14P
For Belt Width (mm)	40.00
Type	A1F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	TL
Bore Description	Bored for 2012 Bushing
Pitch Diameter (in)	5.965
Outside Diameter (in)	5.855
Flange Diameter (in)	6.465
Face Width (in)	2.130
Overall Length (in)	2.130
Min. Bore (in)	0.5
Pulley Belt Width (in)	1.810
Unit System	Inch
Bushing	2012
P.D. (mm)	152.00
O.D. (mm)	148.70
MOQ	1
Weight (lb)	9.34
Part Number Cross Reference	P34-14MGT-40, B3414M40TL, P34-14M-40-2012, 20182784, P34-14M-40-2012 HT250 SPKT, P3414M40TL, 34-14P40-2012, 112906, 34-14P40-2012

Comparable to: P34-14MGT-40, B3414M40TL, P34-14M-40-2012, 20182784, P34-14M-40-2012 HT250 SPKT, P3414M40TL, 34-14P40-2012, 112906, 34-14P40-2012
