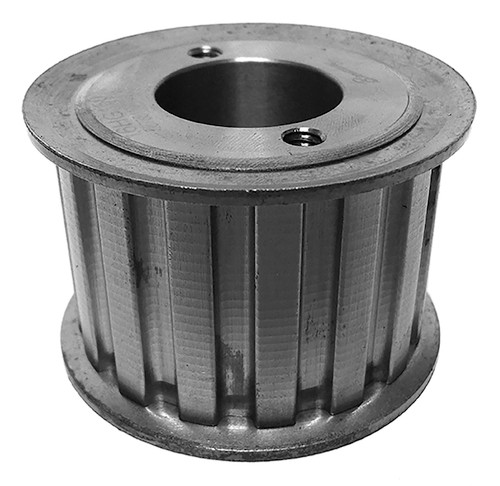

32HQ150, Timing Pulley

32HQ150 - Cast Iron Imperial Pitch Pulleys

32HQ150

32HQ150, Timing Pulley, Cast Iron

Learn more about 32HQ150 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 32HQ150
Teeth 32
Tooth Style H
For Belt Width (in) 1.5000
Type 7
Material Ductile Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for Q1 Bushing
Pitch Diameter (in) 5.093
Outside Diameter (in) 5.039
Flange Diameter (in) 5.313
Face Width (in) 1.750
Overall Length (in) 2.781
Min. Bore (in) 0.75
Unit System Inch
Bushing Q1
P.D. (mm) 129.00
O.D. (mm) 128.00
MOQ 1
Weight (lb) 6.28
Part Number Cross Reference 32HQ150, 32HQ150, 32HQ150
