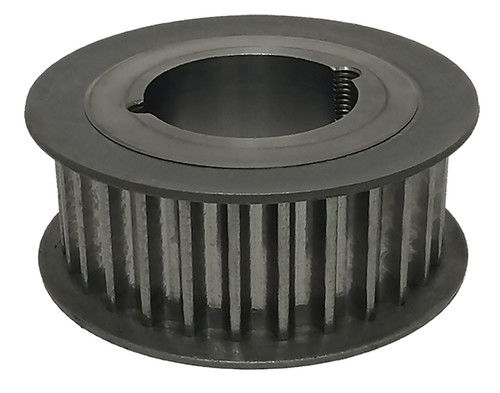

31-14P40-2012, Timing Pulley

31-14P40-2012 - Cast Iron Powerhouse® Pulleys

31-14P40-2012

31-14P40-2012, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 31-14P40-2012 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 31-14P40-2012
Teeth 31
Tooth Style 14P
For Belt Width (mm) 40.00
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 2012 Bushing
Pitch Diameter (in) 5.439
Outside Diameter (in) 5.329
Flange Diameter (in) 6.124
Face Width (in) 2.130
Overall Length (in) 2.130
Min. Bore (in) 0.5
Pulley Belt Width (in) 1.810
Unit System Inch
Bushing 2012
P.D. (mm) 138.00
O.D. (mm) 135.40
MOQ 1
Weight (lb) 7.50
Part Number Cross Reference P31-14MGT-40, B3114M40TL, P31-14M40-2012, 31-14P40-2012, 31-14P40-2012
