30XXHR200, Timing Pulley

30XXHR200 - Cast Iron Imperial Pitch Pulleys

30XXHR200

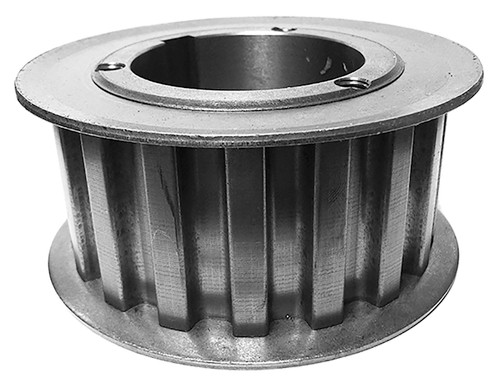

30XXHR200, Timing Pulley, Cast Iron

Learn more about 30XXHR200 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 30XXHR200
Teeth 30
Tooth Style XXH
For Belt Width (in) 2.0000
Type 12
Material Cast Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for R1 Bushing
Pitch Diameter (in) 11.937
Outside Diameter (in) 11.817
Flange Diameter (in) 12.688
Face Width (in) 2.625
Overall Length (in) 3.156
Min. Bore (in) 1.125
Unit System Inch
Bushing R1
P.D. (mm) 303.00
O.D. (mm) 300.10
MOQ 1
Weight (lb) 36.40
Part Number Cross Reference 30XXHR200, 30XXHR200, 30XXHR200
