30XL037-6FS5, Timing Pulley

30XL037-6FS5 - Steel Imperial Pitch Pulleys

30XL037-6FS5

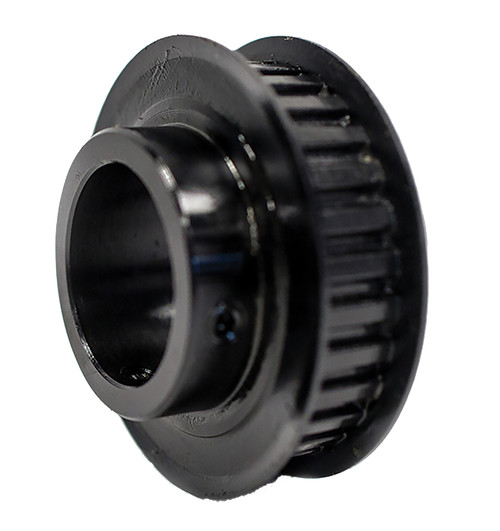

30XL037-6FS5, Timing Pulley, Steel, Black Oxide,

Learn more about 30XL037-6FS5 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number	30XL037-6FS5
Teeth	30
Tooth Style	XL
For Belt Width (in)	0.3750
Type	6F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.375
Bore Description	3/8 Inch Minimum Plain Bore
Pitch Diameter (in)	1.910
Outside Diameter (in)	1.890
Flange Diameter (in)	2.125
Face Width (in)	0.563
Overall Length (in)	0.906
Hub Diameter (in)	1.312
Min. Bore (in)	0.375
Pulley Belt Width (in)	0.430
Unit System	Inch
P.D. (mm)	48.00
O.D. (mm)	48.00
MOQ	1
Weight (lb)	0.40
Part Number Cross Reference	A 6C3-30DF03712, A6C3-30DF03712, 30XL037 3/8 6FS, 30XL037-1S X 3/8, 30XL037-6FS5, 30XL037-6FS5
Set Screw Quantity	2

Comparable to: A 6C3-30DF03712, A6C3-30DF03712, 30XL037 3/8 6FS, 30XL037-1S X 3/8, 30XL037-6FS5, 30XL037-6FS5
