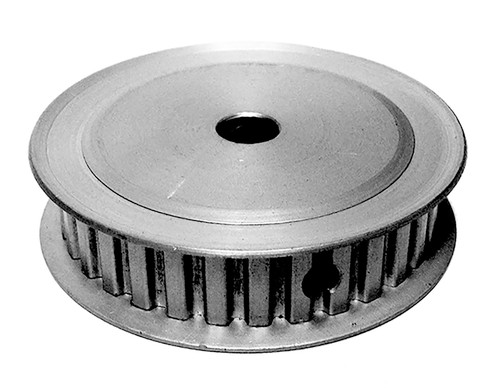

30XL037-3FA5, Timing Pulley

30XL037-3FA5 - Aluminum Imperial Pitch Pulleys

30XL037-3FA5

30XL037-3FA5, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 30XL037-3FA5 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number	30XL037-3FA5
Teeth	30
Tooth Style	XL
For Belt Width (in)	0.3750
Type	3F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore (in)	0.375
Bore Description	3/8 Inch Finished Bore
Pitch Diameter (in)	1.910
Outside Diameter (in)	1.890
Flange Diameter (in)	2.125
Face Width (in)	0.563
Overall Length (in)	0.563
Min. Bore (in)	0.375
Pulley Belt Width (in)	0.430
Unit System	Inch
P.D. (mm)	48.00
O.D. (mm)	48.00
MOQ	1
Weight (lb)	0.20
Part Number Cross Reference	A 6A3-30H3712, A6A3-30H3712, 30XL037 3/8 3FA, 30XL037-5A X 3/8, 30XL037-3FA5, 30XL037-3FA5
Set Screw Quantity	2

Comparable to: A 6A3-30H3712, A6A3-30H3712, 30XL037 3/8 3FA, 30XL037-5A X 3/8, 30XL037-3FA5, 30XL037-3FA5
