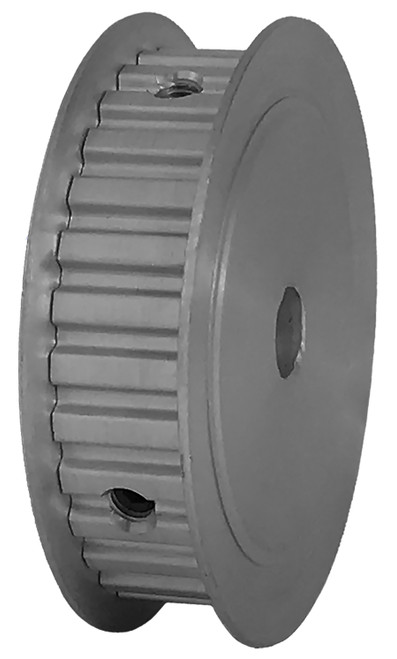

30XL037-3FA4, Timing Pulley

30XL037-3FA4 - Aluminum Imperial Pitch Pulleys

30XL037-3FA4

30XL037-3FA4, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 30XL037-3FA4 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 30XL037-3FA4
Teeth 30
Tooth Style XL
For Belt Width (in) 0.3750
Type 3F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.313
Bore Description 5/16 Inch Finished Bore
Pitch Diameter (in) 1.910
Outside Diameter (in) 1.890
Flange Diameter (in) 2.125
Face Width (in) 0.563
Overall Length (in) 0.563
Min. Bore (in) 0.3125
Pulley Belt Width (in) 0.430
Unit System Inch
P.D. (mm) 48.00
O.D. (mm) 48.00
MOQ 1
Weight (lb) 0.18
Part Number Cross Reference 30XL037 5/16 3FA, 30XL037-5A X 5/16, 30XL037-3FA4, 30XL037-3FA4
Set Screw Quantity 2
