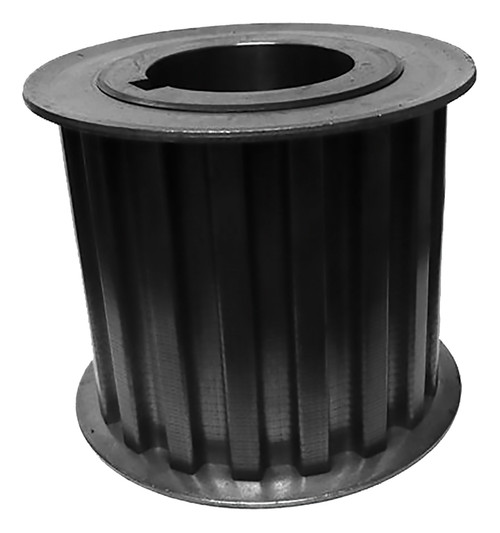

30XHR400, Timing Pulley

30XHR400 - Cast Iron Imperial Pitch Pulleys

30XHR400

30XHR400, Timing Pulley, Cast Iron

Learn more about 30XHR400 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 30XHR400
Teeth 30
Tooth Style XH
For Belt Width (in) 4.0000
Type 11
Material Steel
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for R2 Bushing
Pitch Diameter (in) 8.356
Outside Diameter (in) 8.246
Flange Diameter (in) 8.875
Face Width (in) 4.688
Overall Length (in) 5.156
Min. Bore (in) 1.375
Unit System Inch
Bushing R2
P.D. (mm) 212.00
O.D. (mm) 209.40
MOQ 1
Weight (lb) 47.27
Part Number Cross Reference 30XHR400, 30XHR400, 30XHR400
