30XHR200, Timing Pulley

30XHR200 - Cast Iron Imperial Pitch Pulleys

30XHR200

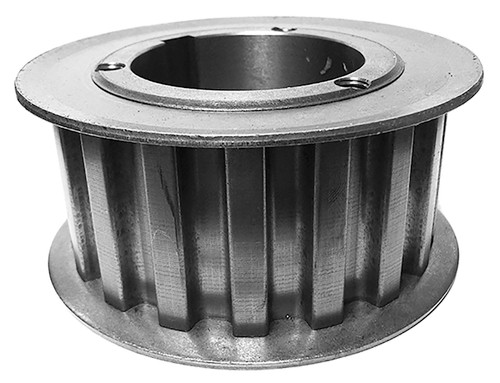

30XHR200, Timing Pulley, Cast Iron

Learn more about 30XHR200 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 30XHR200
Teeth 30
Tooth Style XH
For Belt Width (in) 2.0000
Type 11
Material Cast Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for R1 Bushing
Pitch Diameter (in) 8.356
Outside Diameter (in) 8.246
Flange Diameter (in) 8.875
Face Width (in) 2.563
Overall Length (in) 3.156
Min. Bore (in) 1.125
Unit System Inch
Bushing R1
P.D. (mm) 212.00
O.D. (mm) 209.40
MOQ 1
Weight (lb) 22.83
Part Number Cross Reference 30XHR200, 30XHR200-R1, 21070645, 30XHR200, 30XHR200
