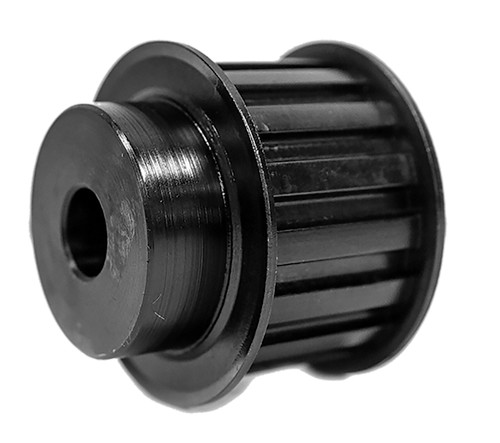

30L100-6FS7, Timing Pulley

30L100-6FS7 - Steel Imperial Pitch Pulleys

30L100-6FS7

30L100-6FS7, Timing Pulley, Steel, Black Oxide,

Learn more about 30L100-6FS7 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number	30L100-6FS7
Teeth	30
Tooth Style	L
For Belt Width (in)	1.0000
Type	6F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.625
Bore Description	5/8 Inch Minimum Plain Bore
Pitch Diameter (in)	3.581
Outside Diameter (in)	3.551
Flange Diameter (in)	3.800
Face Width (in)	1.250
Overall Length (in)	1.750
Hub Diameter (in)	2.250
Min. Bore (in)	0.625
Pulley Belt Width (in)	1.070
Unit System	Inch
P.D. (mm)	91.00
O.D. (mm)	90.20
MOQ	1
Weight (lb)	3.84
Part Number Cross Reference	30L100, 30LB100, 30L100 X 5/8 MPB, 30L100MPB, P30L100, P30L100-PB, 30L100-6FS7, 114332, 30L100-6FS7

Comparable to: 30L100, 30LB100, 30L100 X 5/8 MPB, 30L100MPB, P30L100, P30L100-PB, 30L100-6FS7, 114332, 30L100-6FS7

Documentation

Download Catalog

General Characteristics

Pulley Tolerances

Part Number Nomenclature Chart

Drive Alignment Guide
