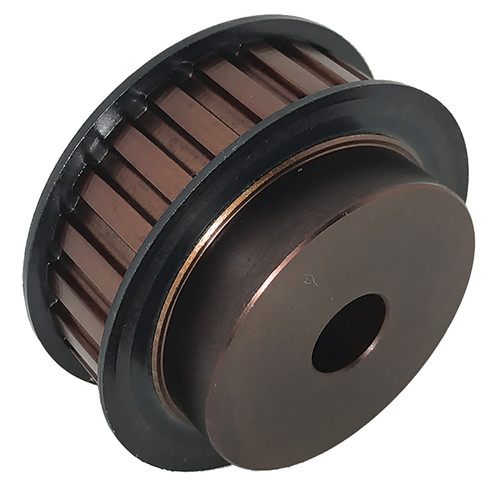

30L075-6FS7, Timing Pulley

30L075-6FS7 - Steel Imperial Pitch Pulleys

30L075-6FS7

30L075-6FS7, Timing Pulley, Steel, Black Oxide,

Learn more about 30L075-6FS7 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number	30L075-6FS7
Teeth	30
Tooth Style	L
For Belt Width (in)	0.7500
Type	6F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.625
Bore Description	5/8 Inch Minimum Plain Bore
Pitch Diameter (in)	3.581
Outside Diameter (in)	3.551
Flange Diameter (in)	3.800
Face Width (in)	1.000
Overall Length (in)	1.500
Hub Diameter (in)	2.250
Min. Bore (in)	0.625
Pulley Belt Width (in)	0.820
Unit System	Inch
P.D. (mm)	91.00
O.D. (mm)	90.20
MOQ	1
Weight (lb)	2.95
Part Number Cross Reference	30L075, 30LB075, 30L075 X 5/8 MPB, 30L075MPB, P30L075, P30L075-PB, 30L075-6FS7, 114321, 30L075-6FS7

Comparable to: 30L075, 30LB075, 30L075 X 5/8 MPB, 30L075MPB, P30L075, P30L075-PB, 30L075-6FS7, 114321, 30L075-6FS7
