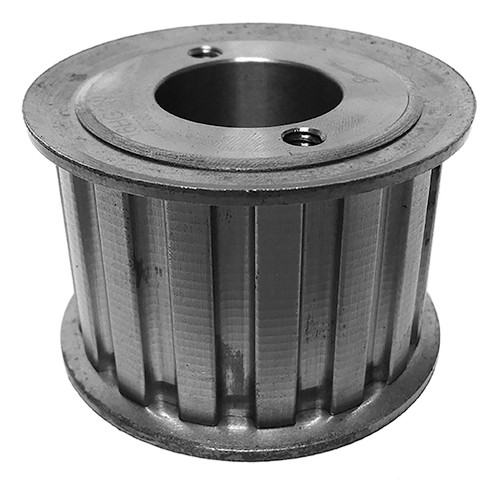

30HP150, Timing Pulley

30HP150 - Cast Iron Imperial Pitch Pulleys

30HP150

30HP150, Timing Pulley, Cast Iron

Learn more about 30HP150 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 30HP150
Teeth 30
Tooth Style H
For Belt Width (in) 1.5000
Type 7
Material Ductile Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for P1 Bushing
Pitch Diameter (in) 4.775
Outside Diameter (in) 4.721
Flange Diameter (in) 5.000
Face Width (in) 1.750
Overall Length (in) 2.625
Min. Bore (in) 0.5
Unit System Inch
Bushing P1
P.D. (mm) 121.00
O.D. (mm) 119.90
MOQ 1
Weight (lb) 6.68
Part Number Cross Reference 30HP150, 30HP150, 30HP150
