30HH100, Timing Pulley

30HH100 - Cast Iron Imperial Pitch Pulleys

30HH100

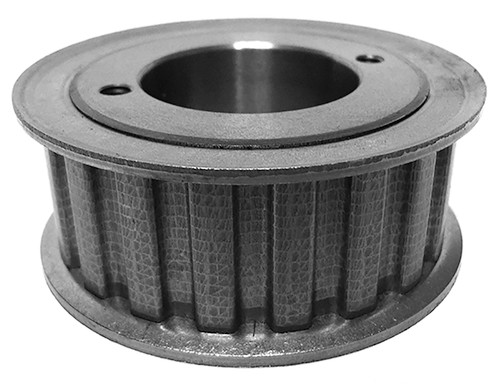

30HH100, Timing Pulley, Cast Iron

Learn more about 30HH100 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 30HH100
Teeth 30
Tooth Style H
For Belt Width (in) 1.0000
Type 16
Material Ductile Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for H Bushing
Pitch Diameter (in) 4.775
Outside Diameter (in) 4.721
Flange Diameter (in) 5.000
Face Width (in) 1.250
Overall Length (in) 1.438
Min. Bore (in) 0.375
Unit System Inch
Bushing H
P.D. (mm) 121.00
O.D. (mm) 119.90
MOQ 1
Weight (lb) 4.67
Part Number Cross Reference 30HH100, 30HH100, 30HH100
