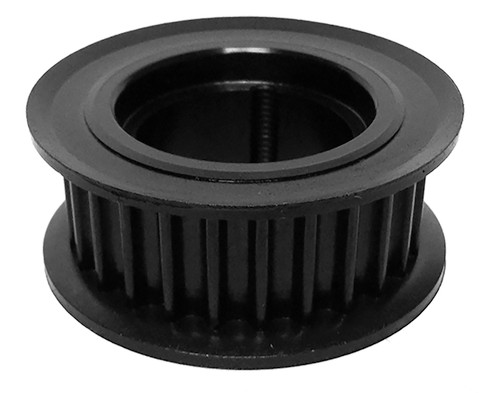

30-8P20-1210, Timing Pulley

30-8P20-1210 - Steel Powerhouse® Pulleys

30-8P20-1210

30-8P20-1210, Timing Pulley, Steel, Black Oxide,

Learn more about 30-8P20-1210 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number	30-8P20-1210
Teeth	30
Tooth Style	8P
For Belt Width (mm)	20.00
Type	A1F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	TL
Bore Description	Bored for 1210 Bushing
Pitch Diameter (in)	3.008
Outside Diameter (in)	2.954
Flange Diameter (in)	3.346
Face Width (in)	1.130
Overall Length (in)	1.130
Min. Bore (in)	0.5
Pulley Belt Width (in)	0.890
Unit System	Inch
Bushing	1210
P.D. (mm)	76.00
O.D. (mm)	75.00
MOQ	1
Weight (lb)	1.14
Part Number Cross Reference	P30-8MGT-20, B308M20TL, P30-8M-20-1210, 20182773, P30-8M-20-1210 HT250 SPKT, P308M20TL, 30-8P20-1210, 112854, 30-8P20-1210

Comparable to: P30-8MGT-20, B308M20TL, P30-8M-20-1210, 20182773, P30-8M-20-1210 HT250 SPKT, P308M20TL, 30-8P20-1210, 112854, 30-8P20-1210
