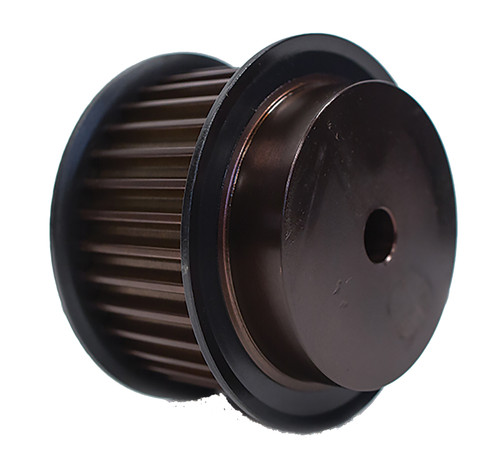

30-8MX36-6FS6, Timing Pulley

30-8MX36-6FS6

30-8MX36-6FS6, Timing Pulley, Steel, Black Oxide,

Learn more about 30-8MX36-6FS6 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Product Number	30-8MX36-6FS6
Teeth	30
Tooth Style	8MX
For Belt Width (mm)	36.00
Type	6F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.500
Bore Description	1/2 Inch Minimum Plain Bore
Pitch Diameter (in)	3.008
Outside Diameter (in)	2.945
Flange Diameter (in)	3.346
Face Width (in)	1.859
Overall Length (in)	2.438
Hub Diameter (in)	2.547
Min. Bore (in)	0.5
Pulley Belt Width (in)	1.620
Unit System	Inch
P.D. (mm)	76.00
O.D. (mm)	74.80
MOQ	1
Weight (lb)	3.75
Part Number Cross Reference	PB8MX-30S-36, PB8MCS-30-36, 30G-8M-36-MPB, 20839708, PB8MX-30S-36 MPB, 8MPC30S36MPB, 30-8MX36-6FS6, 481953, 30-8MX36-6FS6
