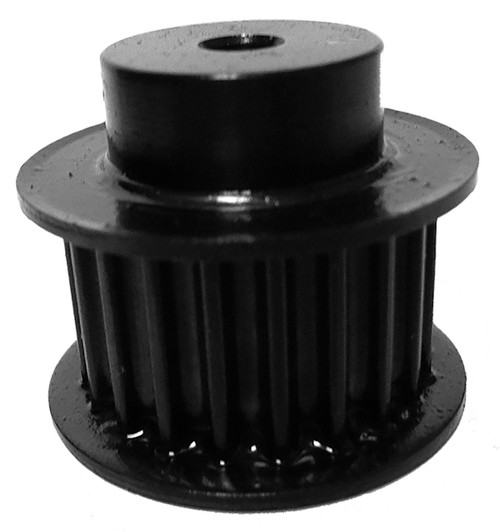

30-5MX15-6FS6, Timing Pulley

30-5MX15-6FS6 - Steel Powerhouse® MX Pulleys

30-5MX15-6FS6

30-5MX15-6FS6, Timing Pulley, Steel, Black Oxide,

Learn more about 30-5MX15-6FS6 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 30-5MX15-6FS6
Teeth 30
Tooth Style 5MX
For Belt Width (mm) 15.00
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 0.500
Bore Description 1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 1.880
Outside Diameter (in) 1.835
Flange Diameter (in) 2.125
Face Width (in) 0.890
Overall Length (in) 1.340
Hub Diameter (in) 1.440
Min. Bore (in) 0.5
Pulley Belt Width (in) 0.710
Unit System Inch
P.D. (mm) 48.00
O.D. (mm) 46.60
MOQ 1
Weight (lb) 0.75
Part Number Cross Reference 30-5MX15-6FS6, 30-5MX15-6FS6
