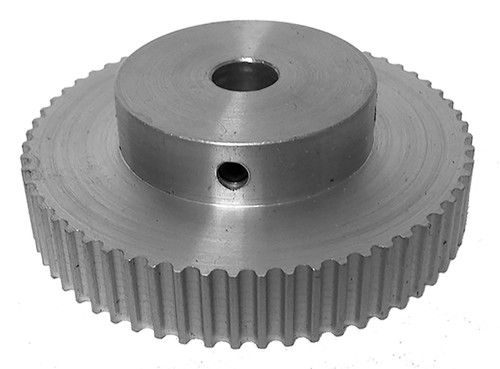

30-3M09M6A6, Timing Pulley

30-3M09M6A6 - Aluminum Powerhouse®HTD® Pulleys

30-3M09M6A6

30-3M09M6A6, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 30-3M09M6A6 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 30-3M09M6A6
Teeth 30
Tooth Style HTD3mm
For Belt Width (mm) 9.00
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore Description 6 mm Finished Bore
Bore (mm) 6.00
Pitch Diameter (in) 1.128
Outside Diameter (in) 1.098
Pulley Belt Width (mm) 9.00
Unit System Metric
P.D. (mm) 29.00
O.D. (mm) 27.90
Face Width (mm) 12.80
Overall Length (mm) 20.60
Hub Diameter (mm) 19.70
MOQ 1
Weight (lb) 0.06
Part Number Cross Reference A 6A23M030NF0906, A6A23M030NF0906, 30-3M09M6A6, 30-3M09M6A6
Set Screw Quantity 2
