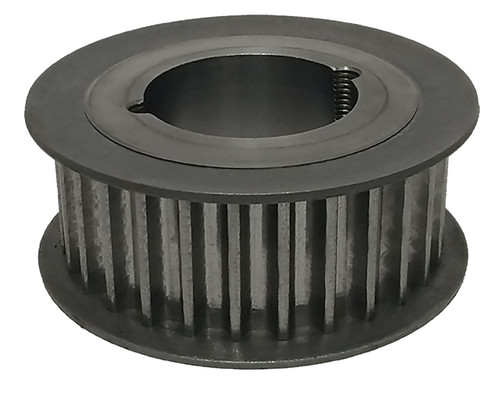

30-14P40-2012, Timing Pulley

30-14P40-2012 - Cast Iron Powerhouse® Pulleys

30-14P40-2012

30-14P40-2012, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 30-14P40-2012 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number	30-14P40-2012
Teeth	30
Tooth Style	14P
For Belt Width (mm)	40.00
Type	A1F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	TL
Bore Description	Bored for 2012 Bushing
Pitch Diameter (in)	5.263
Outside Diameter (in)	5.153
Flange Diameter (in)	5.763
Face Width (in)	2.130
Overall Length (in)	2.130
Min. Bore (in)	0.5
Pulley Belt Width (in)	1.810
Unit System	Inch
Bushing	2012
P.D. (mm)	134.00
O.D. (mm)	130.90
MOQ	1
Weight (lb)	7.95
Part Number Cross Reference	P30-14MGT-40, B3014M40TL, P30-14M-40-2012, 20182770, P30-14M-40-2012 HT250 SPKT, P3014M40TL, 30-14P40-2012, 112904, 30-14P40-2012

Comparable to: P30-14MGT-40, B3014M40TL, P30-14M-40-2012, 20182770, P30-14M-40-2012 HT250 SPKT, P3014M40TL, 30-14P40-2012, 112904, 30-14P40-2012
