28XHR200, Timing Pulley

28XHR200 - Cast Iron Imperial Pitch Pulleys

28XHR200

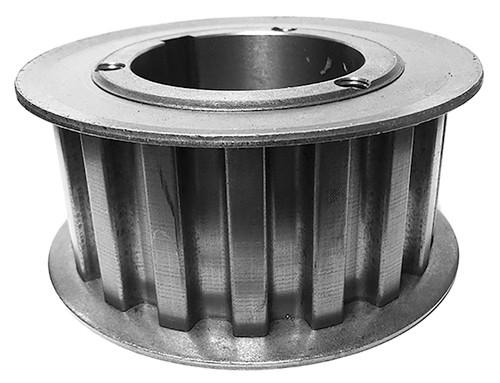

28XHR200, Timing Pulley, Cast Iron

Learn more about 28XHR200 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 28XHR200
Teeth 28
Tooth Style XH
For Belt Width (in) 2.0000
Type 11
Material Steel
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for R1 Bushing
Pitch Diameter (in) 7.799
Outside Diameter (in) 7.689
Flange Diameter (in) 8.375
Face Width (in) 2.563
Overall Length (in) 3.156
Min. Bore (in) 1.125
Unit System Inch
Bushing R1
P.D. (mm) 198.00
O.D. (mm) 195.30
MOQ 1
Weight (lb) 18.80
Part Number Cross Reference 28XHR200, 28XHR200-R1, 21070644, 28XHR200, 28XHR200
