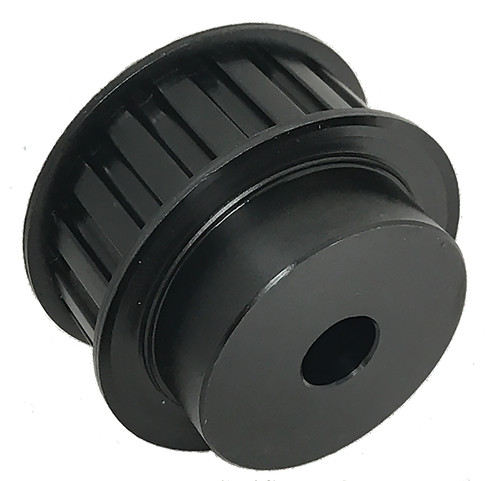

28H200-6FS10, Timing Pulley

28H200-6FS10 - Steel Imperial Pitch Pulleys

28H200-6FS10

28H200-6FS10, Timing Pulley, Steel, Black Oxide,

Learn more about 28H200-6FS10 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number	28H200-6FS10
Teeth	28
Tooth Style	H
For Belt Width (in)	2.0000
Type	6F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	1.000
Bore Description	1 Inch Minimum Plain Bore
Pitch Diameter (in)	4.456
Outside Diameter (in)	4.402
Flange Diameter (in)	4.687
Face Width (in)	2.344
Overall Length (in)	3.406
Hub Diameter (in)	3.500
Min. Bore (in)	1
Pulley Belt Width (in)	2.094
Unit System	Inch
P.D. (mm)	113.00
O.D. (mm)	111.80
MOQ	1
Weight (lb)	11.01
Part Number Cross Reference	28H200, 28HB200, 28H200 X 1 MPB, 28H200MPB, P28H200, P28H200-PB, 28H200-6FS10, 114363, 28H200-6FS10

Comparable to: 28H200, 28HB200, 28H200 X 1 MPB, 28H200MPB, P28H200, P28H200-PB, 28H200-6FS10, 114363, 28H200-6FS10
