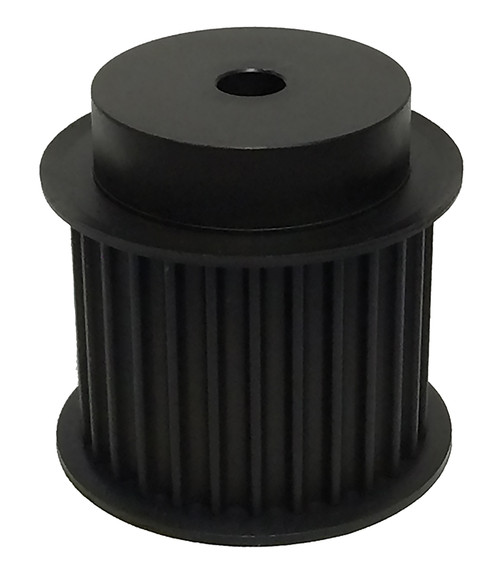

28-8P50-6FS6, Timing Pulley

28-8P50-6FS6

28-8P50-6FS6, Timing Pulley, Steel, Black Oxide,

Learn more about 28-8P50-6FS6 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Product Number	28-8P50-6FS6
Teeth	28
Tooth Style	8P
For Belt Width (mm)	50.00
Type	6F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.500
Bore Description	1/2 Inch Minimum Plain Bore
Pitch Diameter (in)	2.807
Outside Diameter (in)	2.753
Flange Diameter (in)	3.150
Face Width (in)	2.380
Overall Length (in)	3.000
Hub Diameter (in)	2.344
Min. Bore (in)	0.5
Pulley Belt Width (in)	2.140
Unit System	Inch
P.D. (mm)	71.00
O.D. (mm)	69.90
MOQ	1
Weight (lb)	4.00
Part Number Cross Reference	P28-8MGT-50-MPB, B288M50B, P28-8M-50 X 1/2 MPB HT SPKT, 28-8P50-6FS6, 114484, 28-8P50-6FS6
