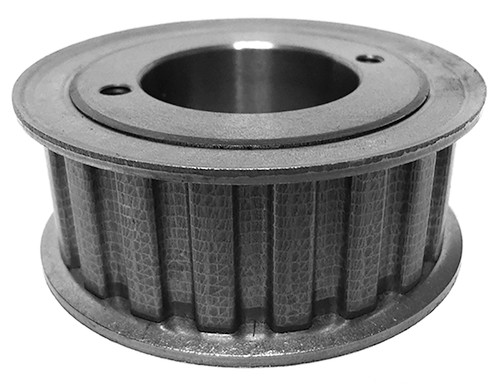

26HH100, Timing Pulley

26HH100 - Cast Iron Imperial Pitch Pulleys

26HH100

26HH100, Timing Pulley, Cast Iron

Learn more about 26HH100 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 26HH100
Teeth 26
Tooth Style H
For Belt Width (in) 1.0000
Type 16
Material Ductile Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for H Bushing
Pitch Diameter (in) 4.138
Outside Diameter (in) 4.084
Flange Diameter (in) 4.375
Face Width (in) 1.250
Overall Length (in) 1.438
Min. Bore (in) 0.375
Unit System Inch
Bushing H
P.D. (mm) 105.00
O.D. (mm) 103.70
MOQ 1
Weight (lb) 3.27
Part Number Cross Reference 26HH100, 26HH100, 26HH100
