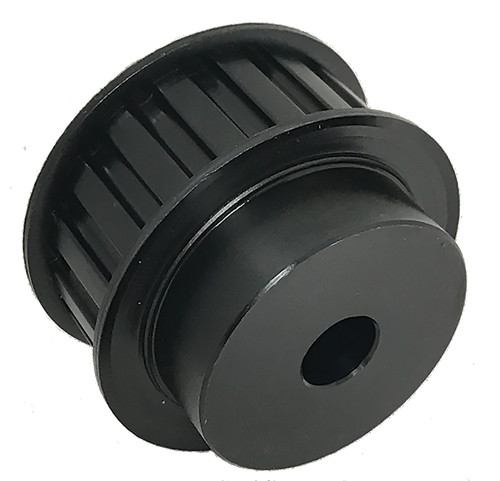

26H200-6FS10, Timing Pulley

26H200-6FS10 - Steel Imperial Pitch Pulleys

26H200-6FS10

26H200-6FS10, Timing Pulley, Steel, Black Oxide,

Learn more about 26H200-6FS10 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number	26H200-6FS10
Teeth	26
Tooth Style	H
For Belt Width (in)	2.0000
Type	6F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	1.000
Bore Description	1 Inch Minimum Plain Bore
Pitch Diameter (in)	4.138
Outside Diameter (in)	4.084
Flange Diameter (in)	4.369
Face Width (in)	2.344
Overall Length (in)	3.406
Hub Diameter (in)	3.375
Min. Bore (in)	1
Pulley Belt Width (in)	2.094
Unit System	Inch
P.D. (mm)	105.00
O.D. (mm)	103.70
MOQ	1
Weight (lb)	9.56
Part Number Cross Reference	26H200, 26HB200, 26H200 X 1 MPB, 26H200MPB, P26H200, P26H200-PB, 26H200-6FS10, 114362, 26H200-6FS10

Comparable to: 26H200, 26HB200, 26H200 X 1 MPB, 26H200MPB, P26H200, P26H200-PB, 26H200-6FS10, 114362, 26H200-6FS10

Documentation

Download Catalog

General Characteristics

Pulley Tolerances

Part Number Nomenclature Chart

Drive Alignment Guide
