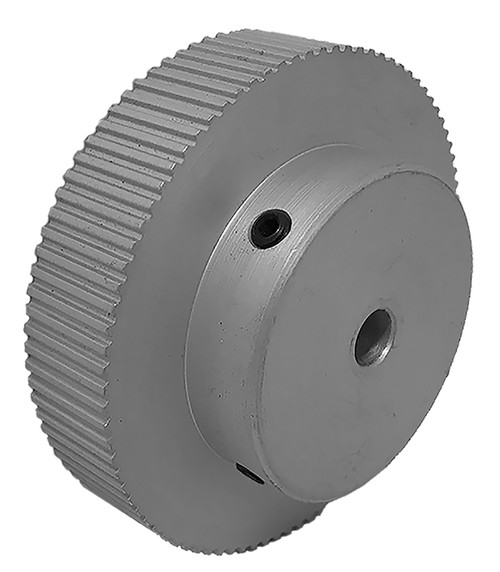

24LT312-6A3, Timing Pulley

24LT312-6A3 - Aluminum Imperial Pitch Pulleys

24LT312-6A3

24LT312-6A3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 24LT312-6A3 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number	24LT312-6A3
Teeth	24
Tooth Style	LT
For Belt Width (in)	0.3125
Type	6
Material	Aluminum
Finish	Clear Anodized
Bore Type	Finished Bore
Bore (in)	0.250
Bore Description	1/4 Inch Finished Bore
Pitch Diameter (in)	0.623
Outside Diameter (in)	0.603
Face Width (in)	0.875
Overall Length (in)	0.500
Hub Diameter (in)	0.500
Min. Bore (in)	0.25
Unit System	Inch
P.D. (mm)	16.00
O.D. (mm)	15.30
MOQ	1
Weight (lb)	0.02
Part Number Cross Reference	A 6A6-24NF03108, A6A6-24NF03108, 24LT-312 X 1/4 6, 24M312-1A X 1/4, 24LT312-6A3, 24LT312-6A3
Set Screw Quantity	2

Comparable to: A 6A6-24NF03108, A6A6-24NF03108, 24LT-312 X 1/4 6, 24M312-1A X 1/4, 24LT312-6A3, 24LT312-6A3
