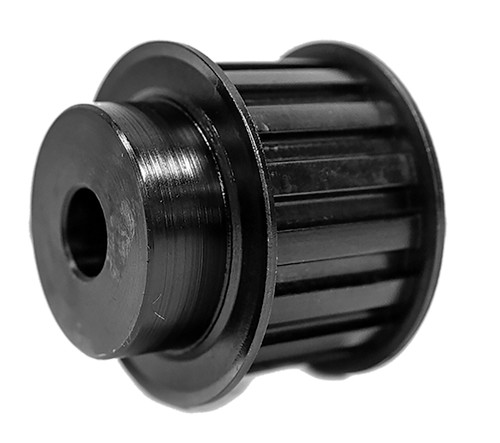

24L100-6FS7, Timing Pulley

24L100-6FS7 - Steel Imperial Pitch Pulleys

24L100-6FS7

24L100-6FS7, Timing Pulley, Steel, Black Oxide,

Learn more about 24L100-6FS7 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number	24L100-6FS7
Teeth	24
Tooth Style	L
For Belt Width (in)	1.0000
Type	6F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.625
Bore Description	5/8 Inch Minimum Plain Bore
Pitch Diameter (in)	2.865
Outside Diameter (in)	2.835
Flange Diameter (in)	3.094
Face Width (in)	1.250
Overall Length (in)	1.750
Hub Diameter (in)	2.250
Min. Bore (in)	0.625
Pulley Belt Width (in)	1.070
Unit System	Inch
P.D. (mm)	73.00
O.D. (mm)	72.00
MOQ	1
Weight (lb)	2.38
Part Number Cross Reference	24L100, 24LB100, 24L100 X 5/8 MPB, 24L100MPB, P24L100, P24L100-PB, 24L100-6FS7, 114329, 24L100-6FS7

Comparable to: 24L100, 24LB100, 24L100 X 5/8 MPB, 24L100MPB, P24L100, P24L100-PB, 24L100-6FS7, 114329, 24L100-6FS7
