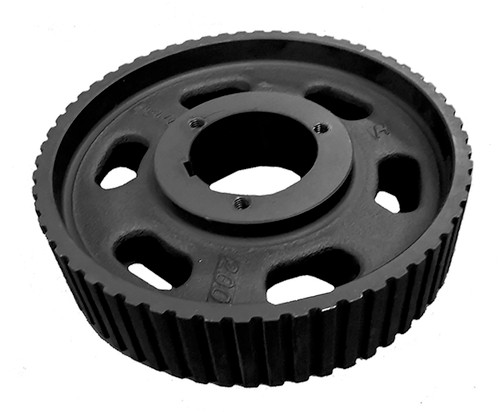

24HP200, Timing Pulley

24HP200 - Cast Iron Imperial Pitch Pulleys

24HP200

24HP200, Timing Pulley, Cast Iron

Learn more about 24HP200 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 24HP200
Teeth 24
Tooth Style H
For Belt Width (in) 2.0000
Type 3F
Material Ductile Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for P2 Bushing
Pitch Diameter (in) 3.820
Outside Diameter (in) 3.766
Flange Diameter (in) 4.063
Face Width (in) 2.281
Overall Length (in) 3.188
Min. Bore (in) 0.5
Unit System Inch
Bushing P2
P.D. (mm) 97.00
O.D. (mm) 95.60
MOQ 1
Weight (lb) 4.87
Part Number Cross Reference 24HP200, 24HP200, 24HP200
