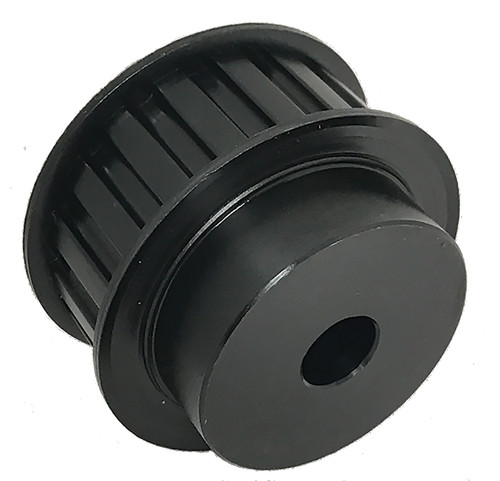

24H200-6FS10, Timing Pulley

24H200-6FS10 - Steel Imperial Pitch Pulleys

24H200-6FS10

24H200-6FS10, Timing Pulley, Steel, Black Oxide,

Learn more about 24H200-6FS10 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number	24H200-6FS10
Teeth	24
Tooth Style	H
For Belt Width (in)	2.0000
Type	6F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	1.000
Bore Description	1 Inch Minimum Plain Bore
Pitch Diameter (in)	3.820
Outside Diameter (in)	3.766
Flange Diameter (in)	4.050
Face Width (in)	2.344
Overall Length (in)	3.281
Hub Diameter (in)	3.000
Min. Bore (in)	1
Pulley Belt Width (in)	2.094
Unit System	Inch
P.D. (mm)	97.00
O.D. (mm)	95.60
MOQ	1
Weight (lb)	7.65
Part Number Cross Reference	24H200, 24HB200, 24H200 X 1 MPB, 24H200MPB, P24H200, P24H200-PB, 24H200-6FS10, 114361, 24H200-6FS10

Comparable to: 24H200, 24HB200, 24H200 X 1 MPB, 24H200MPB, P24H200, P24H200-PB, 24H200-6FS10, 114361, 24H200-6FS10
