24-8P20-1108, Timing Pulley

24-8P20-1108 - Steel Powerhouse® Pulleys

24-8P20-1108

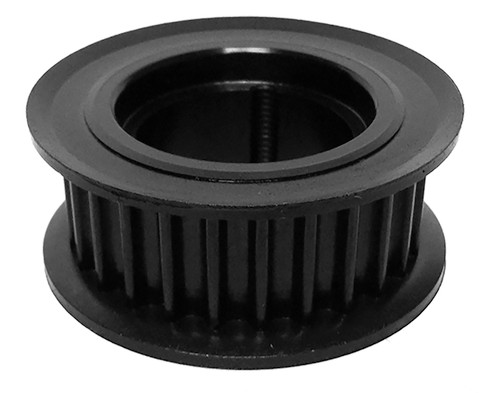

24-8P20-1108, Timing Pulley, Steel, Black Oxide,

Learn more about 24-8P20-1108 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number	24-8P20-1108
Teeth	24
Tooth Style	8P
For Belt Width (mm)	20.00
Type	A1F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	TL
Bore Description	Bored for 1108 Bushing
Pitch Diameter (in)	2.406
Outside Diameter (in)	2.352
Flange Diameter (in)	2.756
Face Width (in)	1.130
Overall Length (in)	1.130
Min. Bore (in)	0.5
Pulley Belt Width (in)	0.890
Unit System	Inch
Bushing	1108
P.D. (mm)	61.00
O.D. (mm)	59.70
MOQ	1
Weight (lb)	0.76
Part Number Cross Reference	P24-8MGT-20, B248M20TL, P24-8M-20-1108, 20182756, P24-8M-20-1108 HT250 SPKT, P248M20TL, 24-8P20-1108, 112851, 24-8P20-1108

Comparable to: P24-8MGT-20, B248M20TL, P24-8M-20-1108, 20182756, P24-8M-20-1108 HT250 SPKT, P248M20TL, 24-8P20-1108, 112851, 24-8P20-1108
