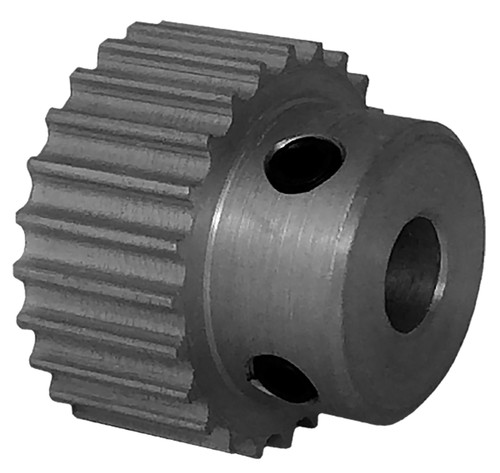

24-3M06M6A6, Timing Pulley

24-3M06M6A6 - Aluminum Powerhouse®HTD® Pulleys

24-3M06M6A6

24-3M06M6A6, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 24-3M06M6A6 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 24-3M06M6A6
Teeth 24
Tooth Style HTD3mm
For Belt Width (mm) 6.00
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore Description 6 mm Finished Bore
Bore (mm) 6.00
Pitch Diameter (in) 0.902
Outside Diameter (in) 0.872
Pulley Belt Width (mm) 6.00
Unit System Metric
P.D. (mm) 23.00
O.D. (mm) 22.20
Face Width (mm) 9.80
Overall Length (mm) 17.50
Hub Diameter (mm) 15.90
MOQ 1
Weight (lb) 0.03
Part Number Cross Reference A 6A23M024NF0606, A6A23M024NF0606, 24-3M06M6A6, 24-3M06M6A6
Set Screw Quantity 2
