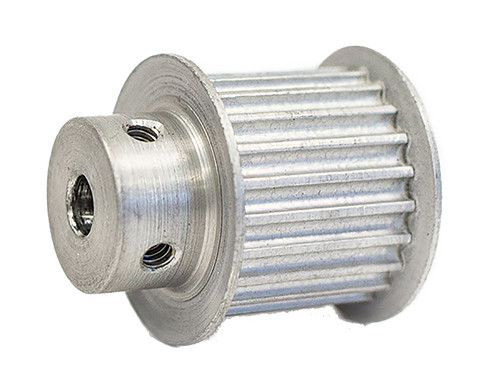

22-3P15-6FA2, Timing Pulley

22-3P15-6FA2 - Aluminum Powerhouse® Pulleys

22-3P15-6FA2

22-3P15-6FA2, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 22-3P15-6FA2 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 22-3P15-6FA2
Teeth 22
Tooth Style 3P
For Belt Width (mm) 15.00
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.188
Bore Description 3/16 Inch Finished Bore
Pitch Diameter (in) 0.827
Outside Diameter (in) 0.797
Flange Diameter (in) 0.945
Face Width (in) 0.742
Overall Length (in) 1.057
Hub Diameter (in) 0.562
Min. Bore (in) 0.1875
Pulley Belt Width (in) 0.636
Unit System Inch
P.D. (mm) 21.00
O.D. (mm) 20.20
MOQ 1
Weight (lb) 0.04
Part Number Cross Reference 3MR-22S-15-6F, 22-3P15-6FA2, 21071073, 22-3P15-6FA2, 22-3P15-6FA2
Set Screw Quantity 2
