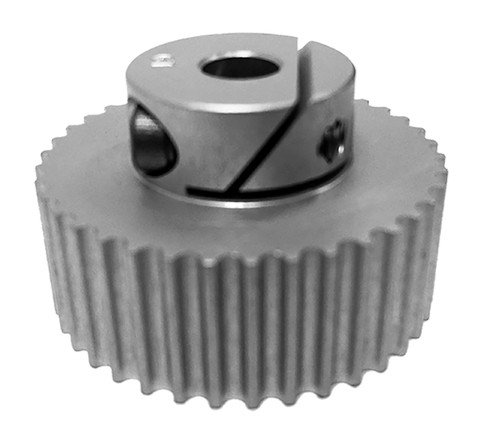

22-3P09-IA3, Timing Pulley

22-3P09-IA3 - E-Z Lock Hub Aluminum Powerhouse® Pulleys

22-3P09-IA3

22-3P09-IA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 22-3P09-IA3 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 22-3P09-IA3
Teeth 22
Tooth Style 3P
For Belt Width (mm) 9.00
Type 6CI
Material Aluminum
Finish Clear Anodized
Bore Type EZ Lock
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 0.827
Outside Diameter (in) 0.797
Flange Diameter (in) 0.945
Face Width (in) 0.506
Overall Length (in) 0.813
Hub Diameter (in) 0.750
Min. Bore (in) 0.25
Unit System Inch
P.D. (mm) 21.00
O.D. (mm) 20.20
Number & Screw Size 1 x 6-32
MOQ 1
Weight (lb) 0.02
Part Number Cross Reference 22-3P09-IA3, 22-3P09-IA3
