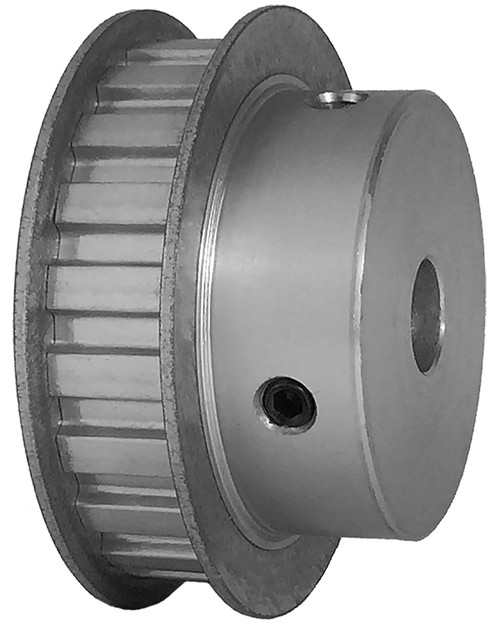

21L050-6FA6, Timing Pulley

21L050-6FA6 - Aluminum Imperial Pitch Pulleys

21L050-6FA6

21L050-6FA6, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 21L050-6FA6 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 21L050-6FA6
Teeth 21
Tooth Style L
For Belt Width (in) 0.5000
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.500
Bore Description 1/2 Inch Finished Bore
Pitch Diameter (in) 2.507
Outside Diameter (in) 2.477
Flange Diameter (in) 2.750
Face Width (in) 0.719
Overall Length (in) 1.375
Hub Diameter (in) 2.000
Min. Bore (in) 0.5
Pulley Belt Width (in) 0.560
Unit System Inch
P.D. (mm) 64.00
O.D. (mm) 62.90
MOQ 1
Weight (lb) 0.55
Part Number Cross Reference A 6A4-21DF05016, A6A4-21DF05016, 21L050 X 1/2 6FA, PT021J16L08T, 21L050-1A X 1/2, 86437894, 21L050-6FA6, 21L050-6FA6
Set Screw Quantity 2

Comparable to: A 6A4-21DF05016, A6A4-21DF05016, 21L050 X 1/2 6FA, PT021J16L08T, 21L050-1A X 1/2, 86437894, 21L050-6FA6, 21L050-6FA6

Documentation

Download Catalog
General Characteristics
Pulley Tolerances
Part Number Nomenclature Chart
Drive Alignment Guide
For custom parts click here
RoHS Certification
