21H300-6FS10, Timing Pulley

21H300-6FS10 - Steel Imperial Pitch Pulleys

21H300-6FS10

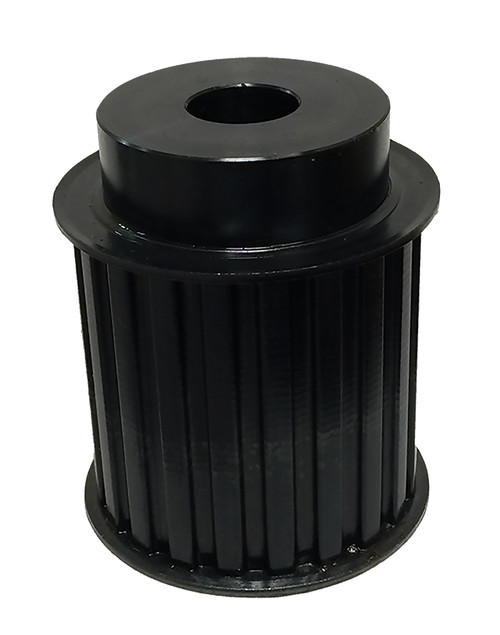

21H300-6FS10, Timing Pulley, Steel, Black Oxide,

Learn more about 21H300-6FS10 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number	21H300-6FS10
Teeth	21
Tooth Style	H
For Belt Width (in)	3.0000
Type	6F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	1.000
Bore Description	1 Inch Minimum Plain Bore
Pitch Diameter (in)	3.342
Outside Diameter (in)	3.288
Flange Diameter (in)	3.574
Face Width (in)	3.375
Overall Length (in)	4.187
Hub Diameter (in)	2.625
Min. Bore (in)	1
Pulley Belt Width (in)	3.125
Unit System	Inch
P.D. (mm)	85.00
O.D. (mm)	83.50
MOQ	1
Weight (lb)	8.12
Part Number Cross Reference	21HB300, 21H300-1, 20181959, 21H300 X 1 MPB, P21H300, P21H300-PB, 21H300-6FS10, 114368, 21H300-6FS10

Comparable to: 21HB300, 21H300-1, 20181959, 21H300 X 1 MPB, P21H300, P21H300-PB, 21H300-6FS10, 114368, 21H300-6FS10
