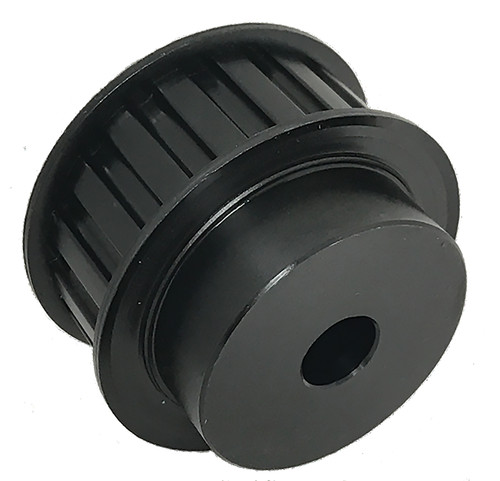

21H200-6FS10, Timing Pulley

21H200-6FS10 - Steel Imperial Pitch Pulleys

21H200-6FS10

21H200-6FS10, Timing Pulley, Steel, Black Oxide,

Learn more about 21H200-6FS10 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 21H200-6FS10
Teeth 21
Tooth Style H
For Belt Width (in) 2.0000
Type 6F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1.000
Bore Description 1 Inch Minimum Plain Bore
Pitch Diameter (in) 3.342
Outside Diameter (in) 3.288
Flange Diameter (in) 3.574
Face Width (in) 2.344
Overall Length (in) 3.156
Hub Diameter (in) 2.625
Min. Bore (in) 1
Pulley Belt Width (in) 2.094
Unit System Inch
P.D. (mm) 85.00
O.D. (mm) 83.50
MOQ 1
Weight (lb) 5.51
Part Number Cross Reference 21H200, 21HB200, 21H200-1, 20181958, 21H200 X 1 MPB, 21H200, 21H200MPB, P21H200, P21H200-PB, 21H200-6FS10, 114359, 21H200-6FS10

Comparable to: 21H200, 21HB200, 21H200-1, 20181958, 21H200 X 1 MPB, 21H200, 21H200MPB, P21H200, P21H200-PB, 21H200-6FS10, 114359, 21H200-6FS10
