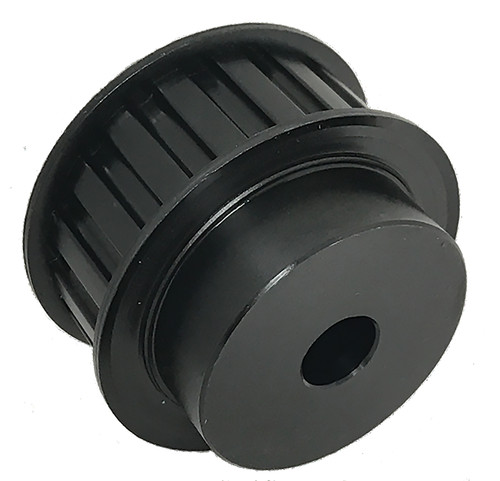

21H100-6FS8, Timing Pulley

21H100-6FS8 - Steel Imperial Pitch Pulleys

21H100-6FS8

21H100-6FS8, Timing Pulley, Steel, Black Oxide,

Learn more about 21H100-6FS8 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 21H100-6FS8
Teeth 21
Tooth Style H
For Belt Width (in) 1.0000
Type 6F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 0.750
Bore Description 3/4 Inch Minimum Plain Bore
Pitch Diameter (in) 3.342
Outside Diameter (in) 3.288
Flange Diameter (in) 3.574
Face Width (in) 1.312
Overall Length (in) 2.125
Hub Diameter (in) 2.625
Min. Bore (in) 0.75
Pulley Belt Width (in) 1.062
Unit System Inch
P.D. (mm) 85.00
O.D. (mm) 83.50
MOQ 1
Weight (lb) 3.77
Part Number Cross Reference 21H100, 21HB100, 21H100 X 3/4 MPB, 21H100MPB, P21H100, 35376615, P21H100-PB, 21H100-6FS8, 114339, 21H100-6FS8

Comparable to: 21H100, 21HB100, 21H100 X 3/4 MPB, 21H100MPB, P21H100, 35376615, P21H100-PB, 21H100-6FS8, 114339, 21H100-6FS8
