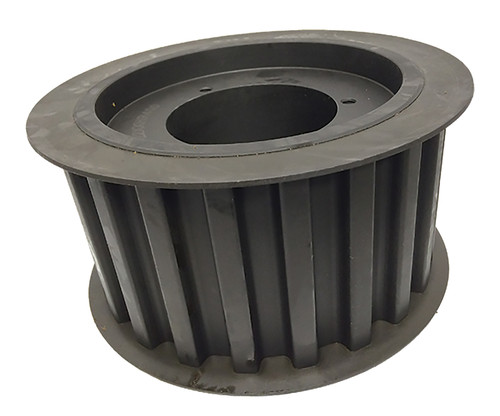

20XXHR400, Timing Pulley

20XXHR400 - Cast Iron Imperial Pitch Pulleys

20XXHR400

20XXHR400, Timing Pulley, Cast Iron

Learn more about 20XXHR400 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 20XXHR400
Teeth 20
Tooth Style XXH
For Belt Width (in) 4.0000
Type 11
Material Cast Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for R2 Bushing
Pitch Diameter (in) 7.958
Outside Diameter (in) 7.838
Flange Diameter (in) 8.688
Face Width (in) 4.750
Overall Length (in) 5.156
Min. Bore (in) 1.375
Unit System Inch
Bushing R2
P.D. (mm) 202.00
O.D. (mm) 199.10
MOQ 1
Weight (lb) 35.70
Part Number Cross Reference 20XXHR400, 20XXHR400, 20XXHR400
