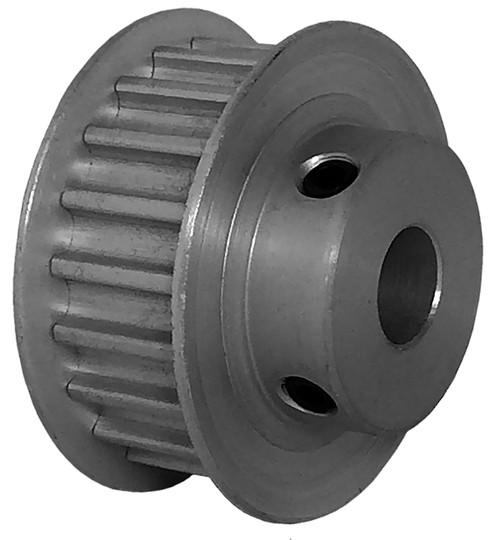

20-5M09M6FA8, Timing Pulley

20-5M09M6FA8 - Aluminum Powerhouse®HTD® Pulleys

20-5M09M6FA8

20-5M09M6FA8, Timing Pulley, Aluminum, Clear Anodized

Learn more about 20-5M09M6FA8 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 20-5M09M6FA8
Teeth 20
Tooth Style HTD5mm
For Belt Width (mm) 9.00
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore Description 8 mm Finished Bore
Bore (mm) 8.00
Pitch Diameter (in) 1.253
Outside Diameter (in) 1.208
Pulley Belt Width (mm) 10.60
Unit System Metric
P.D. (mm) 32.00
O.D. (mm) 30.70
Flange Diameter (mm) 34.90
Face Width (mm) 13.90
Overall Length (mm) 20.20
Hub Diameter (mm) 20.60
MOQ 1
Weight (lb) 0.07
Part Number Cross Reference A 6A25M020DF0908, A6A25M020DF0908, TP5A8W9M-20, 20-5M09M6FA8, 20-5M09M6FA8
Set Screw Quantity 2
