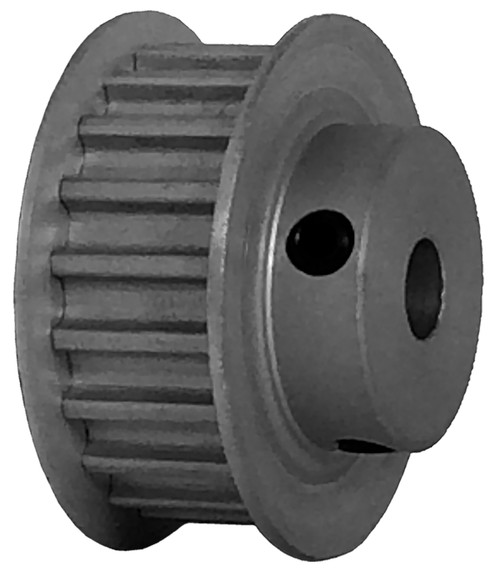

20-5M09-6FA3, Timing Pulley

20-5M09-6FA3

20-5M09-6FA3, Timing Pulley, Aluminum, Clear Anodized

Learn more about 20-5M09-6FA3 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Product Number	20-5M09-6FA3
Teeth	20
Tooth Style	HTD5mm
For Belt Width (mm)	9.00
Type	6F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore (in)	0.250
Bore Description	1/4 Inch Finished Bore
Pitch Diameter (in)	1.253
Outside Diameter (in)	1.208
Flange Diameter (in)	1.375
Face Width (in)	0.540
Overall Length (in)	0.790
Hub Diameter (in)	0.812
Min. Bore (in)	0.25
Pulley Belt Width (in)	0.420
Unit System	Inch
P.D. (mm)	32.00
O.D. (mm)	30.70
MOQ	1
Weight (lb)	0.07
Part Number Cross Reference	A 6A25-020DF0908, A6A25-020DF0908, P20-5M-09AL, 20M5-L09M-6F, PT020G08L09T, 20-5M-09 X 1/4, 20-5M09-6FA3, 20-5M09-6FA3
Set Screw Quantity	2
