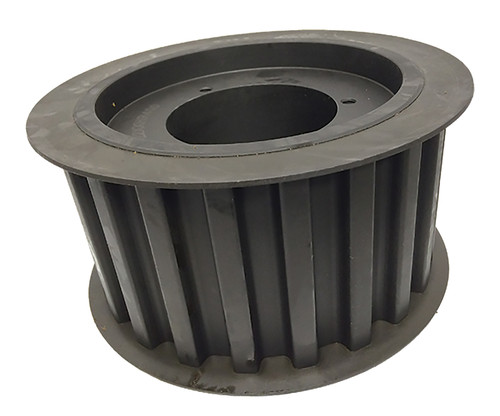

18XXHR400, Timing Pulley

18XXHR400 - Cast Iron Imperial Pitch Pulleys

18XXHR400

18XXHR400, Timing Pulley, Cast Iron

Learn more about 18XXHR400 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 18XXHR400
Teeth 18
Tooth Style XXH
For Belt Width (in) 4.0000
Type 11
Material Cast Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for R2 Bushing
Pitch Diameter (in) 7.162
Outside Diameter (in) 7.042
Flange Diameter (in) 7.875
Face Width (in) 4.750
Overall Length (in) 5.156
Min. Bore (in) 1.375
Unit System Inch
Bushing R2
P.D. (mm) 182.00
O.D. (mm) 178.90
MOQ 1
Weight (lb) 25.80
Part Number Cross Reference 18XXHR400, 18XXHR400, 18XXHR400
