18XL025M6FA8, Timing Pulley

18XL025M6FA8 - Aluminum Metric Pulleys

18XL025M6FA8

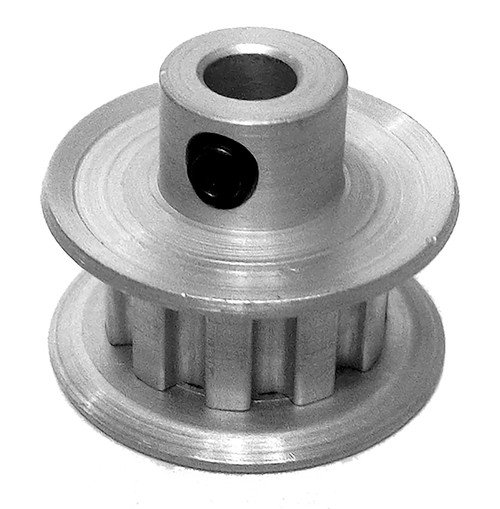

18XL025M6FA8, Timing Pulley, Aluminum, Clear Anodized

Learn more about 18XL025M6FA8 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 18XL025M6FA8
Teeth 18
Tooth Style XL
For Belt Width (in) 0.2500
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore Description 8 mm Finished Bore
Bore (mm) 8.00
Pitch Diameter (in) 1.146
Outside Diameter (in) 1.126
Pulley Belt Width (mm) 7.90
Unit System Metric
P.D. (mm) 29.00
O.D. (mm) 28.60
Flange Diameter (mm) 35.00
Face Width (mm) 11.10
Overall Length (mm) 17.50
Hub Diameter (mm) 21.00
MOQ 1
Weight (lb) 0.05
Part Number Cross Reference A 6A3M018DF06008, A6A3M018DF06008, 18XL025M6FA8, 18XL025M6FA8
Set Screw Quantity 2
