18LT312-6CA3, Timing Pulley

18LT312-6CA3 - Aluminum Imperial Pitch Pulleys

18LT312-6CA3

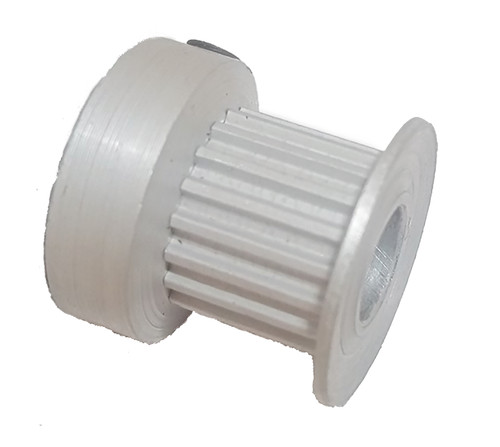

18LT312-6CA3, Timing Pulley, Aluminum, Clear Anodized

Learn more about 18LT312-6CA3 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number	18LT312-6CA3
Teeth	18
Tooth Style	LT
For Belt Width (in)	0.3125
Type	6C
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore (in)	0.250
Bore Description	1/4 Inch Finished Bore
Pitch Diameter (in)	0.468
Outside Diameter (in)	0.448
Flange Diameter (in)	0.635
Face Width (in)	0.397
Overall Length (in)	0.625
Hub Diameter (in)	0.635
Min. Bore (in)	0.25
Pulley Belt Width (in)	0.350
Unit System	Inch
P.D. (mm)	12.00
O.D. (mm)	11.40
MOQ	1
Weight (lb)	0.01
Part Number Cross Reference	A 6A6-18DF03108, A6A6-18DF03108, 18LT-312 X 1/4 6FC, 18M312-6A X 1/4, 18LT312-6CA3, 18LT312-6CA3
Set Screw Quantity	2

Comparable to: A 6A6-18DF03108, A6A6-18DF03108, 18LT-312 X 1/4 6FC, 18M312-6A X 1/4, 18LT312-6CA3, 18LT312-6CA3
