18L050-6FS6 Imperial Pitch Pulleys

18L050-6FS6 - Steel Imperial Pitch Pulleys

Product Details for 18L050-6FS6

Comparable to: A 6C4-18DFB5016, A6C4-18DFB5016, 18L050, 1055045, 18LB050, 114302, P18L050, M18L050

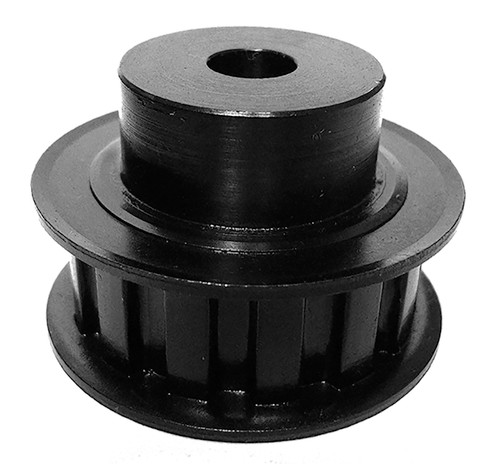

18L050-6FS6, Timing Pulley, Steel, Black Oxide

Specifications

Product Number 18L050-6FS6
Teeth 18
Tooth Style L
For Belt Width (in) 0.500
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 2.149
Outside Diameter (in) 2.119
Flange Diameter (in) 2.375
Face Width (in) 0.750
Overall Length (in) 1.250
Hub Diameter (in) 1.563
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.570
Unit System Inch
Max. Bore (in) 1.313
MOQ 1
Weight (lb) 0.96
Part Number Cross Reference A 6C4-18DFB5016, A6C4-18DFB5016, 18L050, 1055045, 18LB050, 114302, P18L050, M18L050
