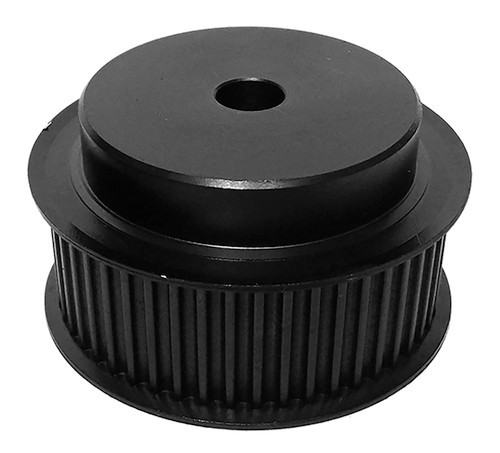

18-5MX25-6FS3, Timing Pulley

18-5MX25-6FS3 - Steel Powerhouse® MX Pulleys

18-5MX25-6FS3

18-5MX25-6FS3, Timing Pulley, Steel, Black Oxide

Learn more about 18-5MX25-6FS3 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 18-5MX25-6FS3
Teeth 18
Tooth Style 5MX
For Belt Width (mm) 25.00
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 0.250
Bore Description 1/4 Inch Minimum Plain Bore
Pitch Diameter (in) 1.128
Outside Diameter (in) 1.083
Flange Diameter (in) 1.375
Face Width (in) 1.280
Overall Length (in) 1.650
Hub Diameter (in) 0.680
Min. Bore (in) 0.25
Pulley Belt Width (in) 1.100
Unit System Inch
P.D. (mm) 29.00
O.D. (mm) 27.50
MOQ 1
Weight (lb) 0.39
Part Number Cross Reference 18-5MX25-6FS3, 18-5MX25-6FS3
