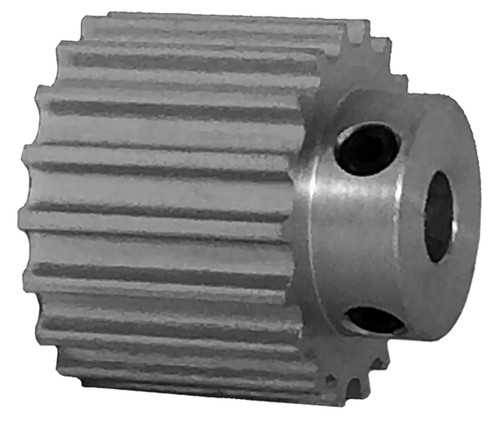

18-5M15-6A3, Timing Pulley

18-5M15-6A3 - Aluminum Powerhouse®HTD® Pulleys

18-5M15-6A3

18-5M15-6A3, Timing Pulley, Aluminum, Clear Anodized

Learn more about 18-5M15-6A3 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 18-5M15-6A3
Teeth 18
Tooth Style HTD5mm
For Belt Width (mm) 15.00
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 1.128
Outside Diameter (in) 1.083
Face Width (in) 0.781
Overall Length (in) 1.032
Hub Diameter (in) 0.687
Min. Bore (in) 0.25
Unit System Inch
P.D. (mm) 29.00
O.D. (mm) 27.50
MOQ 1
Weight (lb) 0.07
Part Number Cross Reference A 6A25-018NF1508, A6A25-018NF1508, 18M5-L015-6, PT018G08L15N, 18-5M15-6A3, 18-5M15-6A3
Set Screw Quantity 2
