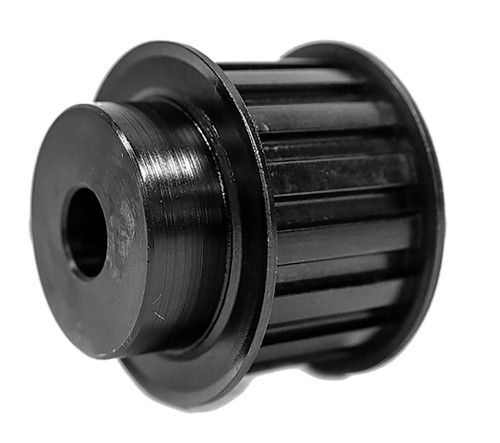

17L100-6FS6, Timing Pulley

17L100-6FS6

17L100-6FS6, Timing Pulley, Steel, Black Oxide

Learn more about 17L100-6FS6 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Product Number	17L100-6FS6
Teeth	17
Tooth Style	L
For Belt Width (in)	1.0000
Type	6F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.500
Bore Description	1/2 Inch Minimum Plain Bore
Pitch Diameter (in)	2.029
Outside Diameter (in)	1.999
Flange Diameter (in)	2.250
Face Width (in)	1.250
Overall Length (in)	1.750
Hub Diameter (in)	1.437
Min. Bore (in)	0.5
Pulley Belt Width (in)	1.070
Unit System	Inch
P.D. (mm)	52.00
O.D. (mm)	50.80
MOQ	1
Weight (lb)	1.23
Part Number Cross Reference	PB17L100, 17L100, 17LB100, 17L100-1/2, 20181912, 17L100 X 1/2 MPB, 17L100, 17L100MPB, P17L100, 35376466, P17L100-PB, 17L100-6FS6, 114323, 17L100-6FS6
