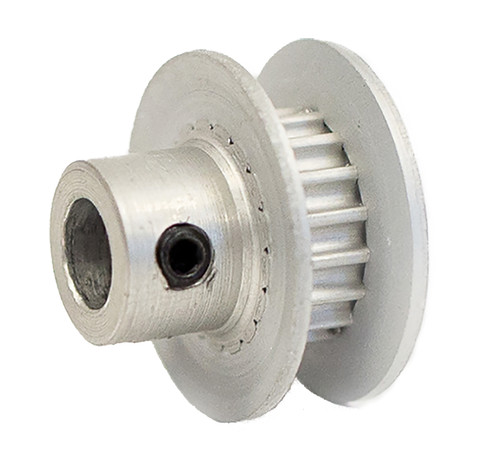

17-2P03-6FA2, Timing Pulley

17-2P03-6FA2 - Aluminum Powerhouse® Pulleys

17-2P03-6FA2

17-2P03-6FA2, Timing Pulley, Aluminum, Clear Anodized

Learn more about 17-2P03-6FA2 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 17-2P03-6FA2
Teeth 17
Tooth Style 2P
For Belt Width (mm) 3.00
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.188
Bore Description 3/16 Inch Finished Bore
Pitch Diameter (in) 0.426
Outside Diameter (in) 0.406
Flange Diameter (in) 0.635
Face Width (in) 0.260
Overall Length (in) 0.484
Hub Diameter (in) 0.312
Min. Bore (in) 0.1875
Pulley Belt Width (in) 0.160
Unit System Inch
P.D. (mm) 11.00
O.D. (mm) 10.30
MOQ 1
Weight (lb) 0.01
Part Number Cross Reference A 6A51-017DF0306, A6A51-017DF0306, 17-2P03-6FA2, 17-2P03-6FA2
Set Screw Quantity 2
