16XL037-6FS4, Timing Pulley

16XL037-6FS4 - Steel Imperial Pitch Pulleys

16XL037-6FS4

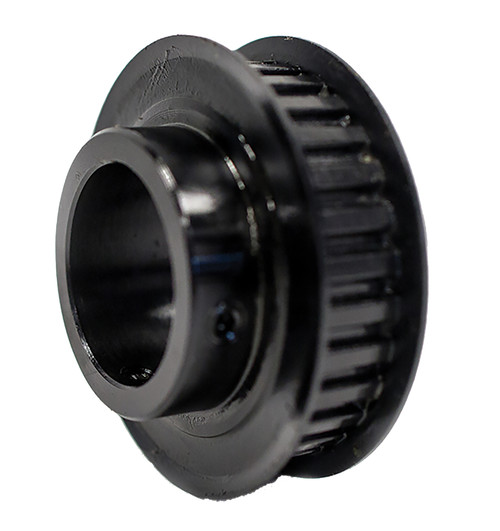

16XL037-6FS4, Timing Pulley, Steel, Black Oxide

Learn more about 16XL037-6FS4 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 16XL037-6FS4
Teeth 16
Tooth Style XL
For Belt Width (in) 0.3750
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 0.313
Bore Description 5/16 Inch Minimum Plain Bore
Pitch Diameter (in) 1.019
Outside Diameter (in) 0.999
Flange Diameter (in) 1.250
Face Width (in) 0.563
Overall Length (in) 0.812
Hub Diameter (in) 0.688
Min. Bore (in) 0.3125
Pulley Belt Width (in) 0.430
Unit System Inch
P.D. (mm) 26.00
O.D. (mm) 25.40
MOQ 1
Weight (lb) 0.13
Part Number Cross Reference A 6C3-16DF03710, A6C3-16DF03710, 16XL037 5/16 6FS, 16XL037-1S X 5/16, 16XL037-6FS4, 16XL037-6FS4
Set Screw Quantity 2

Comparable to: A 6C3-16DF03710, A6C3-16DF03710, 16XL037 5/16 6FS, 16XL037-1S X 5/16, 16XL037-6FS4, 16XL037-6FS4
