16XL037-6FS3 Imperial Pitch Pulleys

16XL037-6FS3 - Steel Imperial Pitch Pulleys

Product Details for 16XL037-6FS3

Comparable to: A 6C3-16DF03708, A6C3-16DF03708, PB16XL037, 78230131, 16XL037, 16XL037-1S X 1/4, 1430750, 16XLB037S, 16XL037-1/4, 20181909, 113405, 16XL037MPB, P16XL037

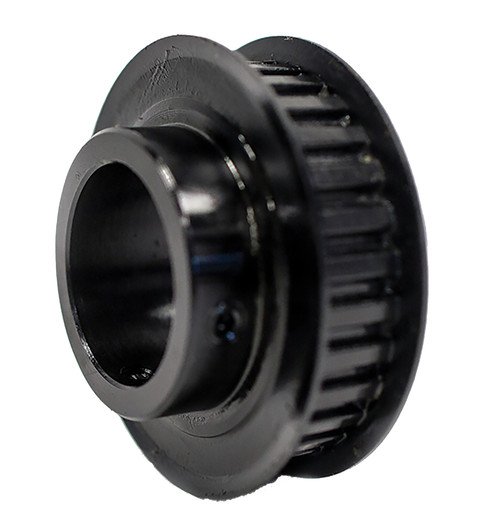

16XL037-6FS3, Timing Pulley, Steel, Black Oxide

Specifications

Product Number 16XL037-6FS3
Teeth 16
Tooth Style XL
For Belt Width (in) 0.375
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1/4 Inch Minimum Plain Bore
Pitch Diameter (in) 1.019
Outside Diameter (in) 0.999
Flange Diameter (in) 1.250
Face Width (in) 0.563
Overall Length (in) 0.812
Hub Diameter (in) 0.688
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.430
Unit System Inch
Max. Bore (in) 0.438
MOQ 1
Weight (lb) 0.14
Part Number Cross Reference A 6C3-16DF03708, A6C3-16DF03708, PB16XL037, 78230131, 16XL037, 16XL037-1S X 1/4, 1430750, 16XLB037S, 16XL037-1/4, 20181909, 113405, 16XL037MPB, P16XL037
